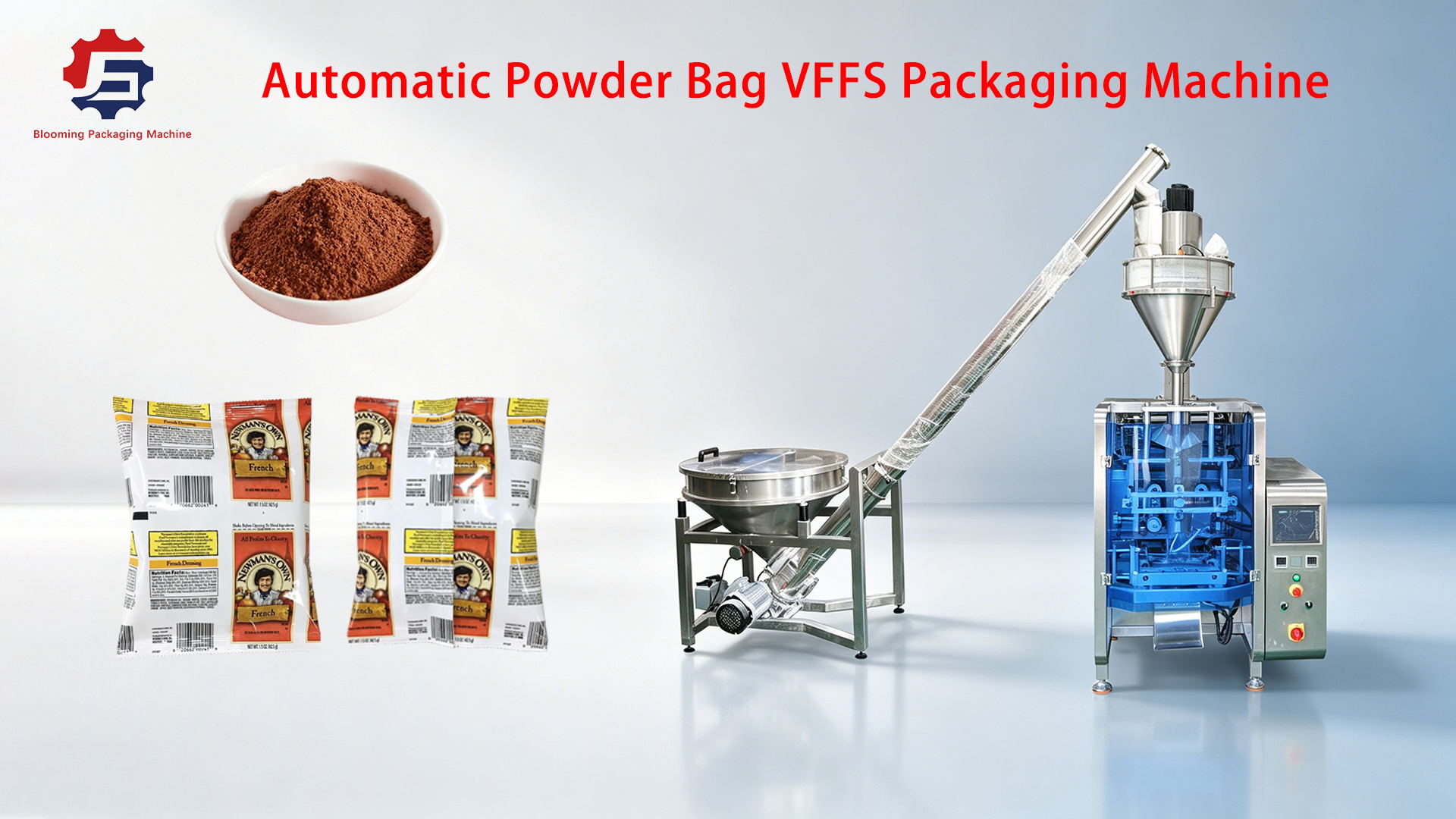

Vertical Powder VFFS Machine
Vertical Powder VFFS Machine
Technical Parameters：
| Model | B-420 | B-520 | B-720 | B-820 | B-920 | B-1020 |
| Bag width | 80~200mm | 100~250mm | 140~350mm | 180~400mm | 220~450mm | 300~500mm |
| Bag length | 80~300mm | 120~400mm | 140~500mm | 200~500mm | 220~500mm | 300~500mm |
| Film Width | Max:420mm | Max：520mm | Max：720mm | Max：820mm | Max：920mm | Max:1020mm |
| Voltage | 380V/50/60hz | 380V/50/60hz | 380V/50/60hz | 380V/50/60hz | 380V/50/60hz | 380V/50/60hz |
| Packing speed | 5~40bags per min | 5~35bags per min | 5~30bags per min | 5~25bags per min | 5~20bags per min | 5~10bags per min |
| Power | 5KW | 5KW | 5KW | 5KW | 5.5KW | 6KW |
| Machine weight | 600kg | 700kg | 750kg | 800kg | 900kg | 1000kg |
Key Performance Advantages；
1、PLC control, bag-making, metering, filling, sealing, coding and bag-cutting.
2、Air Circuit Control and circuit control independent separation, low noise, circuit more stable.
3、Use vacuum belt pull film, pull film resistance small, packaging bag molding, more beautiful, belt wear.
4、Adopt Servo control to realize high precision positioning and accurate dimension.
5、Using the outer film structure, packaging film installation is more simple and easier
6、The deviation adjustment of the packaging bag only needs to be adjusted on the screen, and the operation is simple 7、 The whole machine adopts closed structure to prevent dust from entering the inside of the machine. The whole machine is made of 304 stainless steel.
