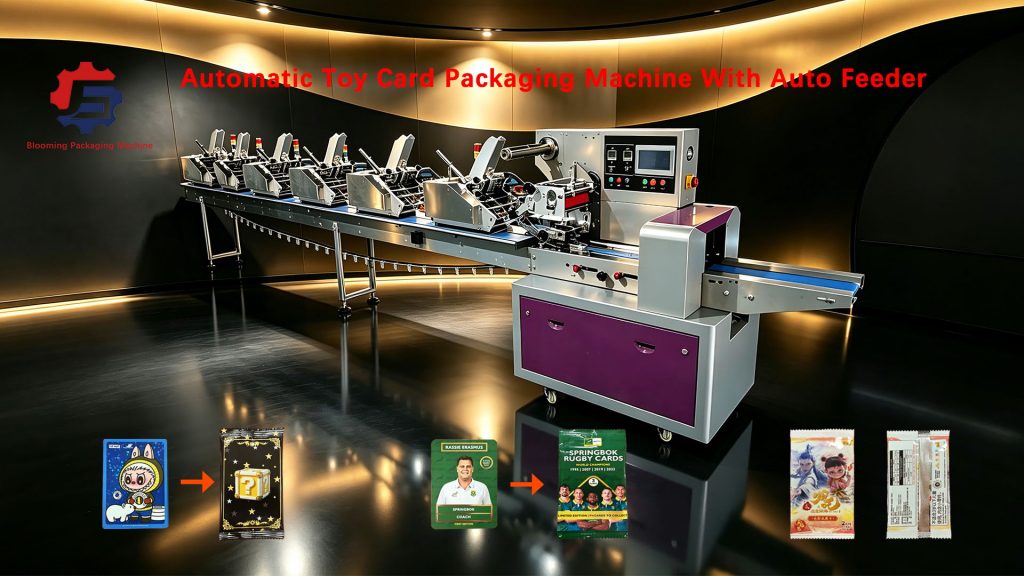

Card Packing Machine

Model & Specifications

Model	B-250	B-350	B-450	B-600	B-700	B-800
Bag width	30~100mm	50~150mm	80~200mm	150~280mm	200~330mm	200~380mm
Bag length	Max 6M	Max 6M	Max 6M	Max 6M	Max 6M	Max 6M
Film Width	Max:250mm	Max：350mm	Max：450mm	Max：600mm	Max：700mm	Max:800mm
Voltage	220V/50/60hz	220V/50/60hz	220V/50/60hz	220V/50/60hz	220V/50/60hz	220V/50/60hz
Packing speed	40~230bags per min	40~230bags per min	40~60bags per min	40~50bags per min	20~30bags per min	20~30bags per min
Power	2.5KW	3KW	3.5KW	4KW	5KW	5KW
Machine weight	400kg	450kg	500kg	600kg	700kg	800kg

Machine Performance Characteristics；

1、Three servo motor, electronic eye sensing product, bag length can be set and cut immediately, saving time and film.

2、Touch screen human-machine interface, convenient and fast parameter setting.

3、Fault self-diagnosis function, clear fault display at a glance.

4、High sensitivity photoelectric eye color tracking, making sealing and cutting positions more accurate.

5、Automatic rotation function, compatible in length and length, with anti air bag leakage packaging

6、Positioning and shutdown function, without sticking knives or wasting film

7、 The transmission system is simple, more reliable, and maintenance is more convenient.

Card Packing Machine
