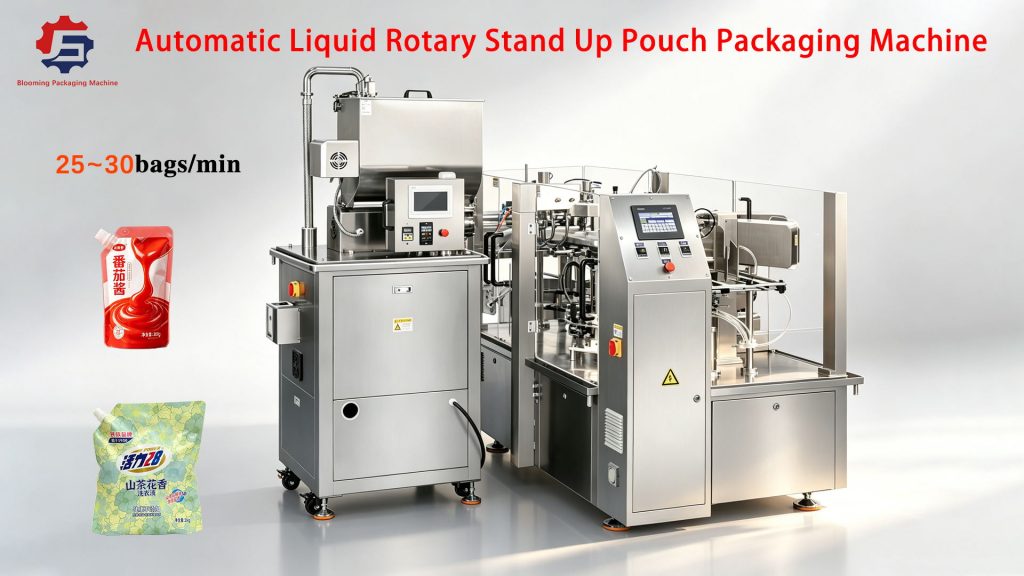

Rotary Premade Pouch Liquid Filling Machine
Rotary Premade Pouch Liquid Filling Machine
Technical Parameters：
| Model | JK200 | JK230 | JK260 | JK300 |
| Bag width | 60-200mm | 90-230mm | 130-260mm | 180-300mm |
| Bag length | 100~360mm | 100~360mm | 100~360mm | 300~450mm |
| Packing speed | 10~60bags per min | 10~60bags per min | 10~60bags per min | 20~40bags per min |
| Filling range | 100~100ml | 1000~2000ml | 1500~2500ml | 2000~3000ml |
| Voltage | 380V/50/60HZ | 380V/50/60HZ | 380V/50/60HZ | 380V/50/60HZ |
| Machine weight | 1800kg | 2000kg | 2300kg | 2600kg |
Machine Performance Features：
- High automation degree, fully automatic feeding, bag opening, filling, sealing, coding and finished product output, saving manual labor.
- Rotary multi-station design, stable operation, high packaging efficiency, wide production capacity range.
- Strong compatibility, applicable to various pre-made bags: stand-up pouches, zipper bags, flat bags, spout bags, vacuum bags, etc.
- Independent filling station configuration, supporting filling of granular, powder, liquid, paste and mixed materials.
- Precision bag positioning, stable clamping mechanism, low bag breakage rate and low material leakage.
- Stainless steel machine frame, food-grade contact parts, easy to clean and meet food hygiene standards.
- PLC touch screen control, simple parameter adjustment, fault self-diagnosis function for convenient maintenance. PLC
- Equipped with safety protection devices such as emergency stop and door interlock to ensure operation safety.
- Flexible speed regulation, adjustable packaging speed according to different materials and bag sizes.

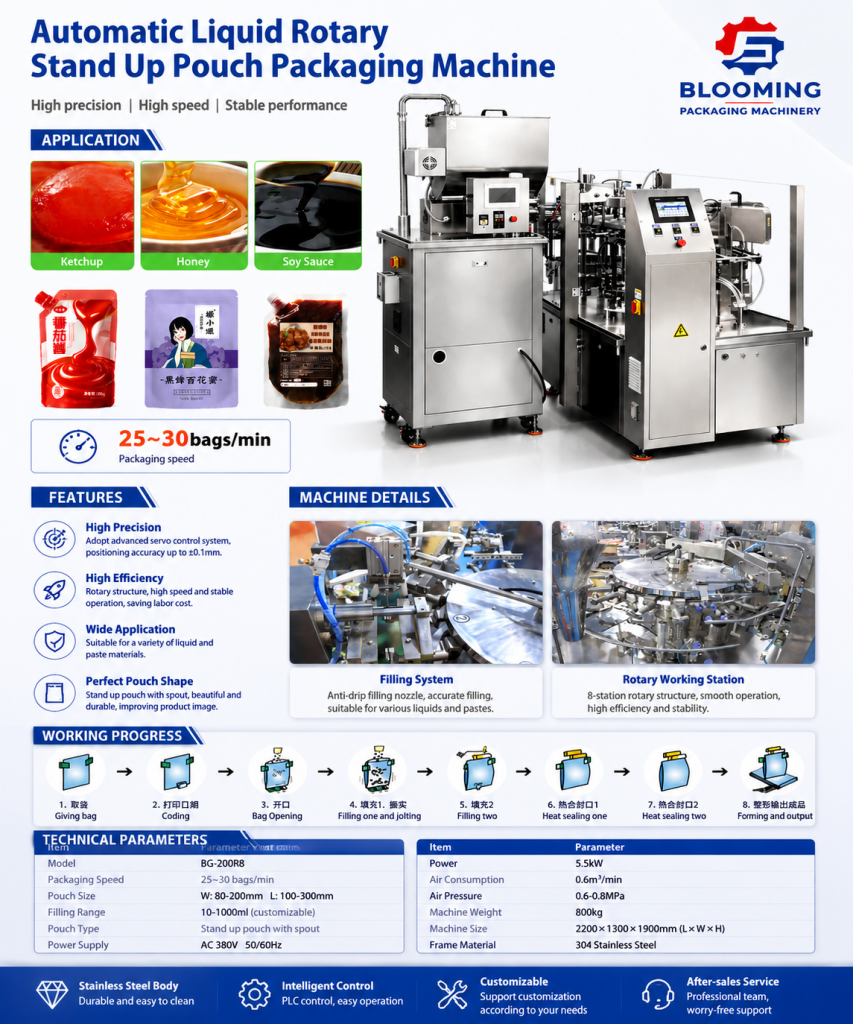

Working Flow Chart
