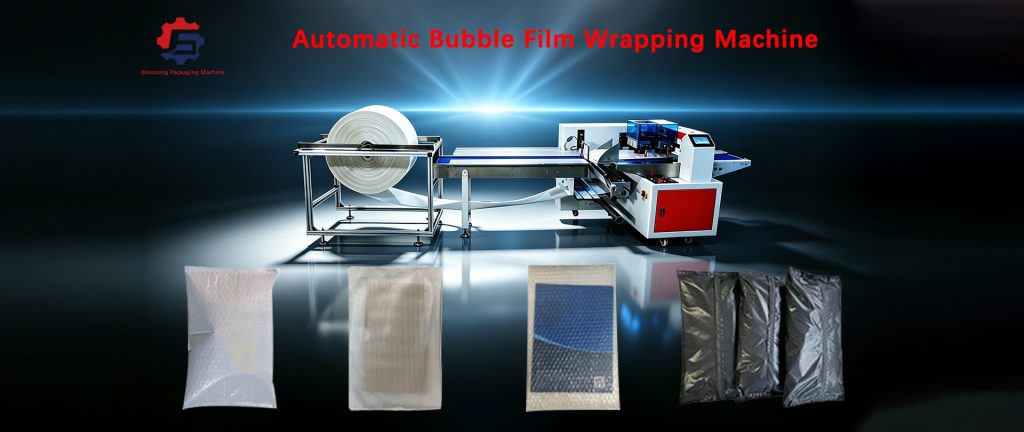

Bubble Film Packing Machine

Model	B-350	B-450	B-600	B-700	B-800
Bag width	80~150mm	120~200mm	180~270mm	200~320mm	200~370mm
Bag length	Max 6M	Max 6M	Max 6M	Max 6M	Max 6M
Film Width	Max：350mm	Max：450mm	Max：600mm	Max：700mm	Max:800mm
Voltage	220V/50/60hz	220V/50/60hz	220V/50/60hz	220V/50/60hz	220V/50/60hz
Packing speed	40~70bags per min	40~70bags per min	40~50bags per min	20~30bags per min	20~30bags per min
Power	3KW	3.5KW	4KW	5KW	5KW
Machine weight	500kg	550kg	650kg	800kg	900kg

Machine Performance Characteristics；
1、Three servo motor, electronic eye sensing product, bag length can be set and cut immediately, saving time and film.

2、Touch screen human-machine interface, convenient and fast parameter setting.

3、Fault self-diagnosis function, clear fault display at a glance.

4、High sensitivity photoelectric eye color tracking, making sealing and cutting positions more accurate.

5、Automatic rotation function, compatible in length and length, with anti air bag leakage packaging

6、Positioning and shutdown function, without sticking knives or wasting film

7、 The transmission system is simple, more reliable, and maintenance is more convenient.
